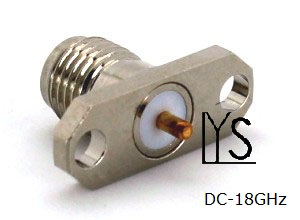

※Panel 2 Holes & Exposed Contact
P / No.	Total L. (mm)	Exposed Contact (mm)
SMA611BH-12(ST)	12.0	Φ1.27 x 2.5
SMA611BH-14.6(ST)	14.6	Φ1.27 x 5.1
SMA611BH-15.5(ST)	15.5	Φ1.27 x 6.0
SMA611BH-18.3/0(ST)	18.3	Φ1.27 x 8.8

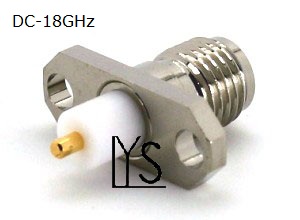

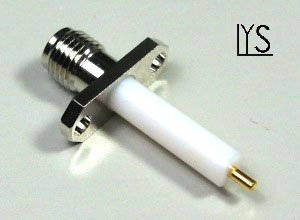

※Panel 2 Holes & Exposed PTFE
P / No.	Total L. (mm)	Exposed PTFE (mm)
SMA611BH-14.6/1.0(ST)	14.6	Φ4.1 x 1.0
SMA611BH-14.6/3.0(ST)	14.6	Φ4.1 x 3.0
SMA611BH-15.4/4.1(ST)	15.4	Φ4.1 x 4.1
SMA611BH -16.4/0.5(ST)	16.4	Φ4.1 x 0.5
SMA611BH -16.4(ST)	16.4	Φ4.1 x 5.0
SMA611BH-18.8/6.0(ST)	18.8	Φ4.1 x 6.0
SMA611BH-18.8/6.5(ST)	18.8	Φ4.1 x 6.5
SMA611BH-19.8/8.0(ST)	19.8	Φ4.1 x 8.0
SMA611BH-20.5/8.0(ST)	20.5	Φ4.1 x 8.0
SMA611BH-26.5(ST)	26.5	Φ4.1 x 10.0
SMA611BH-27.4(ST)	27.4	Φ4.1 x 15.0
SMA611BH-27.4/12.5(ST)	27.4	Φ4.1 x 12.5

※ Common Info.

Impedance	Frequency	Body Material	Contact Finished	Temp. Range
50Ω	0-18.0GHz	Stainless Steel	Gold 30u"	-65℃ ~ +155 ℃

※ Test Report: Structure test only, not included PCB and Solder.

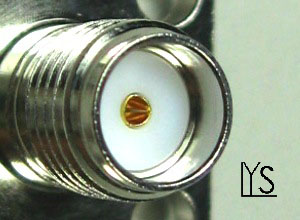

SMA Female Panel 2 Holes (Exposed PTFE ) Terminal Blunt Post
