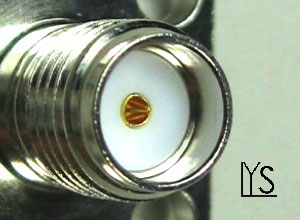

SPEC.: SMA Female Panel 4 Holes (Exposed PTFE) Terminal Blunt Post -Relative - 18GHz SMA-

LIH YEU SHENG Industries Co.,LTD.
※ Impedance：50Ω；Body Material：Stainless Steel

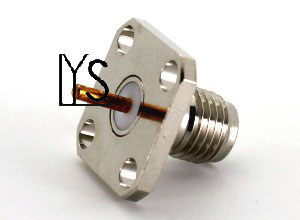

※ Panel 4 Holes & Exposed Contact
P / No.	Total L.	Exposed Contact
SMA601B-12(ST)	12.0mm	Φ1.27x 2.5mm
SMA601B-14.6(ST)	14.6mm	Φ1.27x 5.1mm
SMA601-15.5(ST)	15.5mm	Φ1.27x 6.0mm

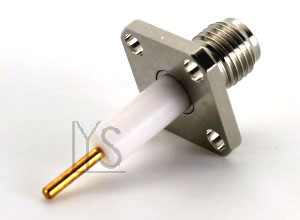

※ Panel 4 Holes & Exposed PTFE
P / No.	Total L.	Exposed PTFE
SMA601-14.6/1.0(ST)	14.6mm	1.0mm
SMA601B-14.6/3.0(ST)	14.6mm	3.0mm
SMA601B-15.5/4.1(ST)	15.5mm	4.1mm
SMA601B-16.4(ST)	16.4mm	5.0mm
SMA601B-17.4/5.0(ST)	17.4mm	5.0mm
SMA601-18.8/6.0(ST)	18.8mm	6.0mm
SMA601-18.8/6.5(ST)	18.8mm	6.5mm
SMA601B-19.8/8.0(ST)	19.8mm	8.0mm
SMA601-20.5/8.0(ST)	20.5mm	8.0mm
SMA601-26.5(ST)	26.5mm	10.0mm
SMA601B-27.4(ST)	27.4mm	15.0mm
SMA601B-27.4/12.5(ST)	27.4mm	12.5mm

SMA Female Panel 4 Holes (Exposed PTFE) Terminal Blunt Post -Relative - 18GHz SMA-
