產品項目
- (P / NO)
- SPEC.

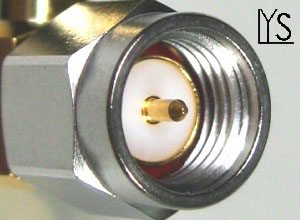

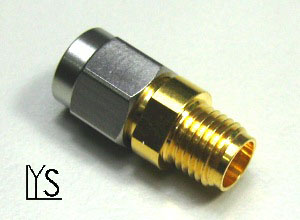

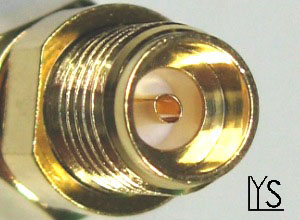

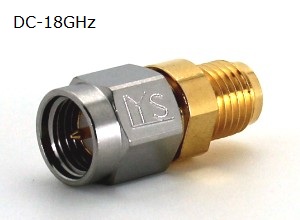

- SMA Male To SMA Female Straight Adaptor
- LYS CLASS NO.
- SMA94A/1H(ST)
- PATENT
- C-Ring, Air Insulator
| 立宇盛工業股份有限公司 | |||
| ※ Product Info. | |||
| 產 品 編 號 | 總長度 | 中心針規格 | 防水等級 |
| SMA94A/1H(ST) |
18.0mm |
Male vs. Female | SMA Male IP67 |
※「IP68」進階防水測試：水深140cm，可達7H。
| ※ Common Info. | |||
| 阻抗 | 扭殼材質 | 主體材質 | 電鍍/中心針 |
| 50Ω | 不 鏽 鋼 | 黃 銅 |
鍍金 30u" |
| VSWR | 頻 率 | 電鍍/主體 | 環 境 溫 度 |
| 1.25Max. | 0-18.0GHz |
鍍金 10u" |
-65℃ ~ +155 ℃ |
| ◎ The green patented product is with great performance and competitive price. | |||
SMA Male To SMA Female Straight Adaptor
