產品項目
- (P / NO)
- SPEC.

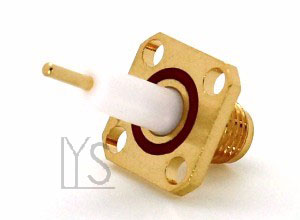

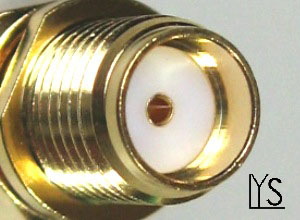

- SMA Female Panel 4 Holes W/O-Ring (Exposed PTFE ) Terminal Blunt Post
- LYS CLASS NO.
- SMA6001B Series
- PATENT
- Anti-Slip Annular Section
|
立宇盛工業股份有限公司
|
||
| ※ 阻抗：50Ω；電鍍：金或鎳；防水等級：IP67 | ||
| ※ Terminal Blunt/露出實心導體 | ||
| 產 品 編 號 | 總長度 | 尾端/形狀x長度(mm) |
| SMA6001B-12 | 12.0mm | 實心 /Φ1.27x2.5 |
| SMA6001B-14.6 | 14.6mm | 實心 /Φ1.27x5.1 |
| SMA6001B-15.5 | 15.5mm | 實心 /Φ1.27x6.0 |
| ※ Exposed TPEF/露出絕緣 | ||
| 產 品 編 號 | 總長度 | 絕緣外露長度 |
| SMA6001B-14.6/1.0 | 14.6mm | Φ4.1x1.0 (mm) |
| SMA6001B-14.6/3.0 | 14.6mm | Φ4.1x3.0 (mm) |
| SMA6001B-15.5/3.0 | 15.5mm | Φ4.1x3.0 (mm) |
| SMA6001B-15.5/4.1 | 15.5mm | Φ4.1x4.1 (mm) |
| SMA6001B-16.4 | 16.4mm | Φ4.1x5.0 (mm) |
| SMA6001B-17.4/5.0 | 17.4mm | Φ4.1x5.0 (mm) |
| SMA6001B-18.8/6.0 | 18.8mm | Φ4.1x6.0 (mm) |
| SMA6001B-18.8/6.5 | 18.8mm | Φ4.1x6.5 (mm) |
| SMA6001B-19.8/8.0 | 19.8mm | Φ4.1x8.0 (mm) |
| SMA6001B-26.5 | 26.5mm | Φ4.1x10.0 (mm) |
| SMA6001B-27.4 | 27.4mm | Φ4.1x15.0 (mm) |
| SMA6001B-27.4/12.5 | 27.4mm | Φ4.1x12.5 (mm) |
| ※ 進階防水測試：水深120cm，可達6H。 | ||
SMA Female Panel 4 Holes W/O-Ring (Exposed PTFE ) Terminal Blunt Post
