產品項目
- (P / NO)
- SPEC.

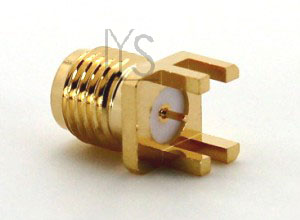

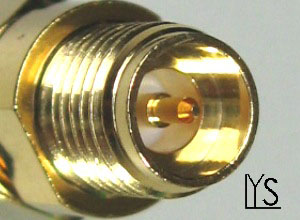

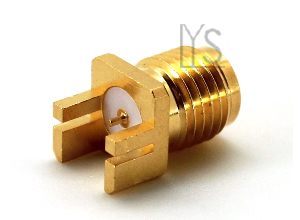

- RP-SMA Female Edge Type For PCB Terminal Φ0.5mm Post -Relative - 18GHz SMA-
- LYS CLASS NO.
- RSMA761A-10.5 Series
- PATENT
- Air Insulator
| 立宇盛工業股份有限公司 | ||
| ※總長度:：10.5mm；腳長：3.0mm；阻抗：50Ω；電鍍：鍍金或鎳 |
| 連接器間距(mm) | 產 品 編 號 I 中心針外露1.5mm |
產 品 編 號 II *新* 中心針外露1.0mm |
| 0.6 | RSMA761A-10.5/0.6 | RSMA761A-10.5/0.6-A |
| 0.62 | RSMA761A-10.5/0.62#New# | RSMA761A-10.5/0.62-A |
| 0.7 | RSMA761A-10.5/0.7 | RSMA761A-10.5/0.7-A |
| 0.8 | RSMA761A-10.5/0.8 | RSMA761A-10.5/0.8-A |
| 1.0 | RSMA761A-10.5/1.0 | RSMA761A-10.5/1.0-A |
| 1.22 | RSMA761A-10.5/1.22 | RSMA761A-10.5/1.22-A |
| 1.6 | RSMA761A-10.5/1.6 | RSMA761A-10.5/1.6-A |
| 2.0 | RSMA761A-10.5/2.0 | RSMA761A-10.5/2.0-A |
RP-SMA Female Edge Type For PCB Terminal Φ0.5mm Post -Relative - 18GHz SMA-
