PRODUCT ITEM
- (P / NO)
- SPEC.
- SMA Female To SMA Female Bulkhead With O-Ring Adaptor
- LYS CLASS NO.
- SMA82A/1H
- PATENT
- Air Insulator
| LIH YEU SHENG Industries Co.,LTD. | ||||
| ※ Product Info. | ||||
| P / No. | Total L. | Thread L. | Contact | IP Code |
| SMA82A/1H | 22.1mm | 14.5mm | Female vs. Femaale | IP67 |
| ※ Common Info. | |||
| Impedance | Body Material | Body Finished | Contact Finished |
| 50Ω | Brass | Gold 10u" | Gold 30u" |
| VSWR | Frequency | Temp. Range | |
| 1.25Max. | 0-18.0GHz | -65℃ ~ +155 ℃ | |
| ◎ The green patented product is with great performance and competitive price. | |||

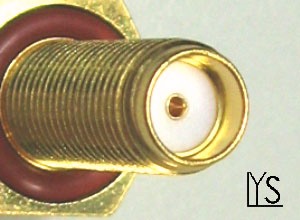

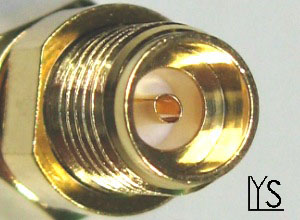

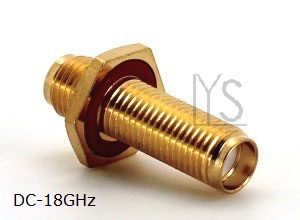

SMA Female To SMA Female Bulkhead With O-Ring Adaptor
