※ With 4 different kind of versions: A, B, C, and D ※ Height is from the center line of interface to the PCB.
P / No.	Height (mm)	Impedance	Length (mm)	Finished
RSMA755A-174	6.4	50Ω	19.1	Gold or Nickel
RSMA755B-174	5.5
RSMA755C-174	4.4
RSMA755D-174	5.8

● "OD" means a series of different cable types, included RG174( also fit RG316) .
● e.g.1. Your requirements are included Height--5.5mm & cable type--RG174 → P/No.: RSMA755B-174
● e.g.2. Your requirements are included Height--5.8mm & cable type--RG316 → P/No.: RSMA755D-174

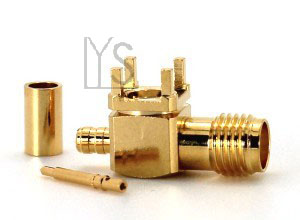

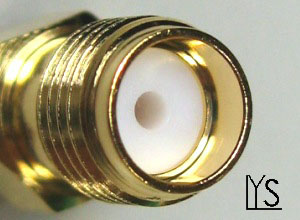

SMA Female For PCB & RG174/316 Cable
