※ With 4 different kind of versions: A, B, C, and D ※ Height is from the center line of interface to the PCB.
P / No.	Height (mm)	Impedance	Length	Finish
SMA755LA-OD	6.4	50Ω	21.6mm	Gold or Nickel
SMA755LB-OD	5.5
SMA755LC-OD	4.4
SMA755LD-OD	5.8

● "OD" means a series of different cable types, included RG178/ Φ1.5(also fit Φ1.48)/ Φ1.37/ Φ1.32/ Φ1.13/ Φ0.98/ Φ0.85(also fit Φ0.81).
● e.g.1. Your requirements are included Height--6.4mm & cable type--RG178 → P/No.: SMA755LA-178
● e.g.2. Your requirements are included Height--4.4mm & cable type--Φ0.81 → P/No.: SMA755LC-0.85

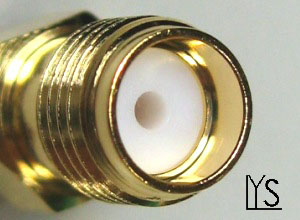

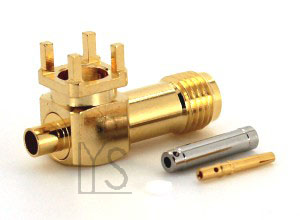

SMA Female For PCB & Mini Coaxial Cable Connector
