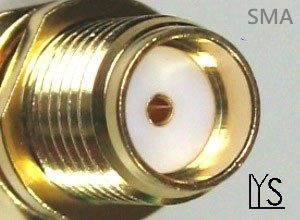

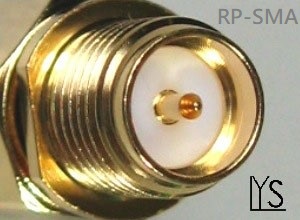

- Difference of SMA & RP-SMA
PRODUCT ITEM
- (P / NO)
- SPEC.
- SMA Female Right Angle Bulkhead Crimp Type For Mini Coaxial Cable Connector With O-Ring
- LYS CLASS NO.
- SMA855D-OD-A -For Mini Coax.
- PATENT
- Ferrule / Retainer
| LIH YEU SHENG Industries Co.,Ltd. | |
| ※ Thread with D-Flat; Thread: 11.4mm；Impedance：50Ω；Finish：Gold or Nickel | |
| P / No. | Coaxial Cable |
| SMA855D-178-A | for RG178 |
| SMA855D-1.5-A |
for Φ1.48 |
| SMA855D-1.37-A |
for Φ1.37 |
| SMA855D-1.31-A |
for Φ1.32 |
| SMA855D-1.13-A |
for Φ1.13 |
| SMA855D-0.98-A |
for Φ0.98 |
| SMA855D-0.85-A | for Φ0.81 |
| ※ IP Code: IP67 Certificated | |
| ※ Reliability Testing: Continuous immersion in 120cm water depth for 6 hours. | |
SMA Female Right Angle Bulkhead Crimp Type For Mini Coaxial Cable Connector With O-Ring
