PRODUCT ITEM

  • (P / NO)
SPEC.

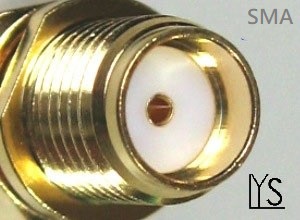

SMA Female Bulkhead Front Mount Crimp Type For Mini Coaxial Cable With O-Ring Connector
LYS CLASS NO.
SMA825C/6.95-OD
PATENT
Ferrule / Retainer
 LIH YEU SHENG Industries Co.,LTD.

※ Rear Mount Thread: 6.95mm; Panel: 1.75mm ; Total Length: 18.2mm

※ Impedance：50Ω；Finish：Gold or Nickel
P /No. Coaxial Cable
SMA825C/6.95-178  for RG178
SMA825C/6.95-1.5  for Φ1.48
SMA825C/6.95-1.37 for Φ1.37
SMA825C/6.95-1.32 for Φ1.32
SMA825C/6.95-1.13 for Φ1.13
SMA825C/6.95-0.98 for Φ0.98
SMA825C/6.95-0.85 for Φ0.81

※ Rear Mount Thread: 7.0mm; Panel: 2.3mm ; Total Length: 17.8mm
※ Impedance：50Ω；Finish：Gold or Nickel
P /No. Coaxial Cable
SMA825C/7.0-0.7-178  for RG178
SMA825C/7.0-0.7-1.5  for Φ1.48
SMA825C/7.0-0.7-1.37 for Φ1.37
SMA825C/7.0-0.7-1.32 for Φ1.32
SMA825C/7.0-0.7-1.13 for Φ1.13
SMA825C/7.0-0.7-0.98 for Φ0.98
SMA825C/7.0-0.7-0.85 for Φ0.81

※ IP Code: IP67 Certificated.
※ Reliability Testing: Continuous immersion in 120cm water depth for 6 hours.

SMA Female Bulkhead Front Mount Crimp Type For Mini Coaxial Cable With O-Ring Connector
