PRODUCT ITEM
- (P / NO)
- SPEC.

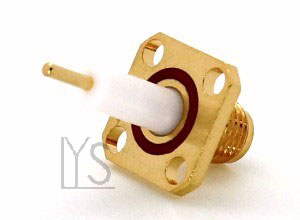

- RP-SMA Female Panel 4 Holes W/O-Ring (Exposed PTFE) Terminal Blunt Post
- LYS CLASS NO.
- RSMA6001B Series
- PATENT
- Anti-Slip Annular Section
|
LIH YEU SHENG Industries Co.,LTD.
|
||
| ※ Impedance：50Ω；Finish：Gold or Nickel；IP Code：IP67 Certificated | ||
| ※Panel 4 Holes & Exposed Contact | ||
| P / No. | Total L. | Exposed Contact |
| RSMA6001B-15.5 | 15.5mm | Φ1.27x 6.0mm |
| ※ Panel 4 Holes & Exposed PTFE | ||
| P / No. | Total L. | Exposed PTFE |
| RSMA6001B-15.5/4.1 | 15.5mm | 4.1mm |
| RSMA6001B-16.4 | 16.4mm | 5.0mm |
| RSMA6001B-19.8/8.0 | 19.8mm | 8.0mm |
| RSMA6001B-24.9/10 | 24.9mm | 10.0mm |
| ※ Reliability test: Continuous immersion at 120cm water depth in 6 hours. | ||
RP-SMA Female Panel 4 Holes W/O-Ring (Exposed PTFE) Terminal Blunt Post
