PRODUCT ITEM
- (P / NO)
- SPEC.
- SMA Female Bulkhead Crimp Type For Min.Coaxial Cable
- LYS CLASS NO.
- SMA835-OD
- PATENT
- Ferrule / Retainer
| LIH YEU SHENG Industries Co.,LTD. | |
|

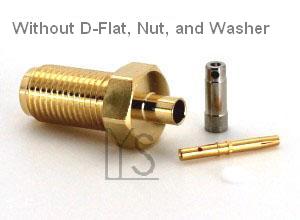

※ Thread: 11.4mm; Panel: 3.4mm ;Without D-Flat, Nut, and Washer |
|
| ※ Total Length: 18.3mm；Impedance：50Ω；Finish：Gold or Nickel | |
| P /No. | Coaxial Cable |
| SMA835-178 | for RG178 |
| SMA835-1.5 |
for Φ1.5 |
| SMA835-1.37 |
for Φ1.37 |
| SMA835-1.32 |
for Φ1.32 |
| SMA835-1.13 |
for Φ1.13 |
| SMA835-0.98 |
for Φ0.98 |
| SMA835-0.85 |
for Φ0.81/ Φ0.85 |
SMA Female Bulkhead Crimp Type For Min.Coaxial Cable
