PRODUCT ITEM
- (P / NO)
- SPEC.

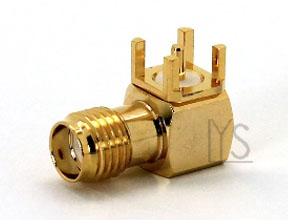

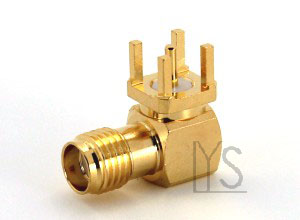

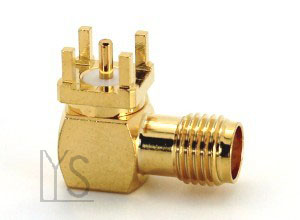

- SMA Female Right Angle For PCB
- LYS CLASS NO.
- SMA751 Series
- PATENT
- Positioning Insulator
| LIH YEU SHENG Industries Co.,LTD. | |||
|
※ Impedance：50Ω；Finish：Gold or Nickel ※ Height is from the center line of interface to the PCB. |
|||
| P / No. | Height (mm) | Length of Feet (mm) | PCB Mount |
| SMA751 | 6.4 | 3.9 | 7.0 SQ |
| SMA751/2.9 | 6.4 | 2.9 | 7.0 SQ |
| SMA751/2.8 | 4.6 | 2.8 | 6.1 * 7.0 |
SMA Female Right Angle For PCB
