PRODUCT ITEM
- (P / NO)
- SPEC.

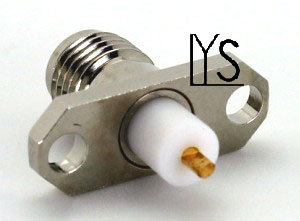

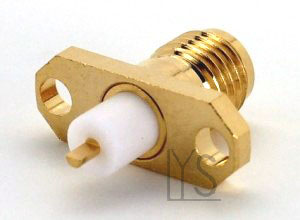

- RP-SMA Female Panel 2 Holes Exposed PTFE Semicircle Post -Relative - 18GHz SMA-
- LYS CLASS NO.
- RSMA616B Series
- PATENT
- Anti-Slip Annular Section
| LIH YEU SHENG Industries Co.,LTD. | ||
| ※ Product Info. | ||
| P /No. | Exposed PTFE | Body Material/ Finished |
| RSMA616B-15.5 | 4.1mm | Brass/ Gold |
| RSMA616B-15.5(ST) | 4.1mm | Stainless Steel/Passivated |
| ※ Common Info. | |||
| Total L. | Impedance | Contact Finished | Temp. Range |
| 15.5mm | 50Ω | Gold | -65℃ ~ +155℃ |
RP-SMA Female Panel 2 Holes Exposed PTFE Semicircle Post -Relative - 18GHz SMA-
