PRODUCT ITEM
- (P / NO)
- SPEC.

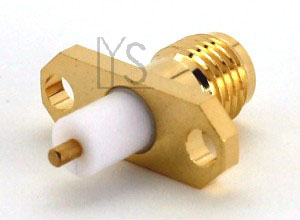

- RP-SMA Female Panel 2 Holes Exposed PTFE Blunt Post -Relative - 18GHz SMA-
- LYS CLASS NO.
- RSMA611B Series
- PATENT
- Anti-Slip Annular Section
| LIH YEU SHENG Industries Co.,LTD. | |||
| ※Panel 2 Holes & Exposed Contact | |||
| P / No. | Total L. | Exposed Contact | Body Material/ Finished |
| RSMA611B-15.5 | 15.5mm | Φ1.27x 6.0mm | Brass/ Gold |

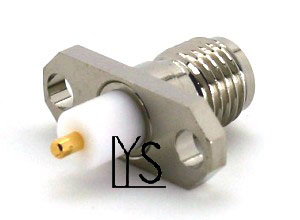

| RSMA611B-15.5(ST) | 15.5mm | Φ1.27x 6.0mm | Stainless Steel/Passivated |
| ※ Panel 2 Holes & Exposed PTFE | |||
| P / No. | Total L. | Exposed PTFE | Body Material/ Finished |
| RSMA611B-15.5/4.1 | 15.5mm | 4.1mm | Brass/ Gold |
| RSMA611B-19.8/8.0 | 19.8mm | 8.0mm | Brass/ Gold |
| RSMA611B-15.5/4.1(ST) | 15.5mm | 4.1mm | Stainless Steel/Passivated |
| RSMA611B-19.8/8.0(ST) | 19.8mm | 8.0mm | Stainless Steel/Passivated |
| ※ Common Info. | ||
| Impedance | Contact Finished | Temp. Range |
| 50Ω | Gold | -65℃ ~ +155℃ |
RP-SMA Female Panel 2 Holes Exposed PTFE Blunt Post -Relative - 18GHz SMA-
