PRODUCT ITEM
- (P / NO)
- SPEC.

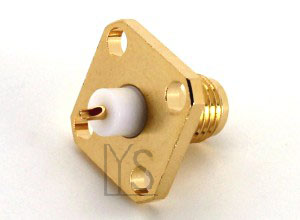

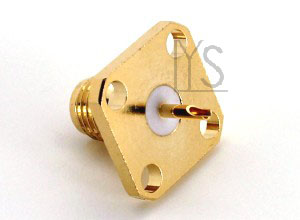

- SMA Female Panel 4 Holes (Exposed PTFE) Solder Cup -Relative - 18GHz SMA-
- LYS CLASS NO.
- SMA603B Series
- PATENT
- B Series -- Anti-Slip Annular Section
| LIH YEU SHENG Industries Co.,LTD. | ||
| ※ Total L.：14.6mm；Impedance：50Ω | ||
| P / No. | Feature | Body Material/ Finished |
| SMA603B-14.6 | Contact Φ1.27 x 5.1mm | Brass/ Gold |
| SMA603B-14.6/3.0 | Exposed PTFE: 3.0mm | Brass/ Gold |

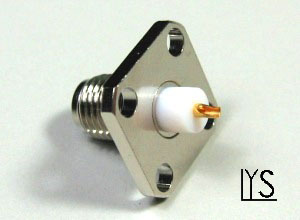

| SMA603B-14.6(ST) | Contact Φ1.27 x 5.1mm | Stainless Steel/Passivated |
| SMA603B-14.6/3.0(ST) | Exposed PTFE: 3.0mm | Stainless Steel/Passivated |
SMA Female Panel 4 Holes (Exposed PTFE) Solder Cup -Relative - 18GHz SMA-
