PRODUCT ITEM
- (P / NO)
- SPEC.

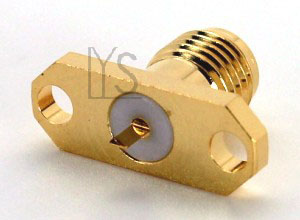

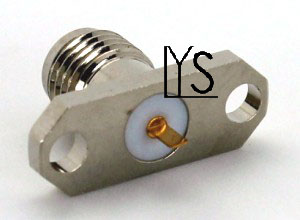

- SMA Female Panel 2 Holes (Exposed PTFE) Terminal Tab -Relative - 18GHz SMA-
- LYS CLASS NO.
- SMA617B Series
- PATENT
- Anti-Slip Annular Section
| LIH YEU SHENG Industries Co.,LTD. | |||
| ※ Impedance：50Ω | |||
| P / No. | Total L. | Contact | Body Material/ Finished |
| SMA617B-12 | 12.0mm | 0.15 x 2.5mm | Brass/ Gold |
| SMA617B-20.5/9.1 | 20.5mm | Exposed PTFE: 9.1mm Contact: 0.13 x 1.9mm |
Brass/ Gold |
| SMA617B-12(ST) | 12.0mm | 0.15 x 2.5mm | Stainless Steel/Passivated |
| SMA617B-20.5/9.1(ST) | 20.5mm | Exposed PTFE: 9.1mm Contact: 0.13 x 1.9mm |
Stainless Steel/Passivated |
SMA Female Panel 2 Holes (Exposed PTFE) Terminal Tab -Relative - 18GHz SMA-
