PRODUCT ITEM
- (P / NO)
- SPEC.

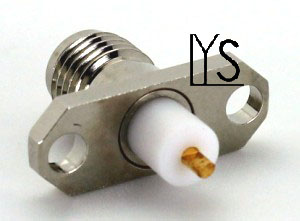

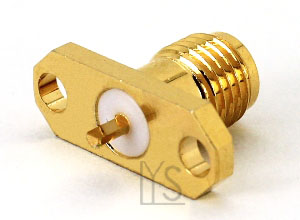

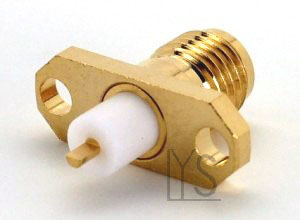

- SMA Female Panel 2 Holes (Exposed PTFE) Semicircle Post -Relative - 18GHz SMA-
- LYS CLASS NO.
- SMA616B Series
- PATENT
- Anti-Slip Annular Section
| LIH YEU SHENG Industries Co.,LTD. | |||
| ※ Impedance：50Ω | |||
| P / No. | Total L. | Feature | Body Material/ Finished |
| SMA616B-12 | 12.0mm | Contact 0.8 x 2.5mm | Brass/ Gold |
| SMA616B-15.5 | 15.5mm | Exposed PTFE: 4.1mm | Brass/ Gold |
| SMA616B-12(ST) | 12.0mm | Contact 0.8 x 2.5mm | Stainless Steel/Passivated |
| SMA616B-15.5(ST) | 15.5mm | Exposed PTFE: 4.1mm | Stainless Steel/Passivated |
SMA Female Panel 2 Holes (Exposed PTFE) Semicircle Post -Relative - 18GHz SMA-
