PRODUCT ITEM
- (P / NO)
- SPEC.
- RP-SMA Female Panel 4 Holes (Exposed PTFE ) Terminal Blunt Post
- LYS CLASS NO.
- RSMA601CH Series
- FILE
- PATENT
- Air Insulator + Anti-Slip Annular Section
| LIH YEU SHENG Industries Co.,LTD. | ||
| ※Panel 2 Holes & Exposed Contact | ||
| P / No. | Total L. | Exposed Contact |
| RSMA601CH-12 | 12.0mm | Φ1.27x 2.5mm |
| RSMA601CH-15.5 | 15.5mm |
Φ1.27x 6.0mm |
| ※ Panel 2 Holes & Exposed PTFE | ||
| P / No. | Total L. | Exposed Contact |
| RSMA601CH-15.5/4.1 | 15.5mm | 4.1 mm |
| RSMA601CH-19.8/8.0 | 19.8mm |
8.0 mm |
| ※ Common Info. | ||||
| Impedance | Frequency | Body Finished | Contact Finished | Temp. Range |
| 50Ω | 0-18.0GHz | Gold 10u" | Gold 30u" | -65℃ ~ +155 ℃ |

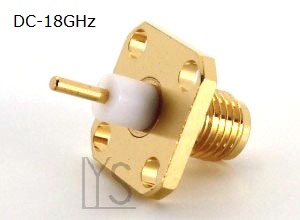

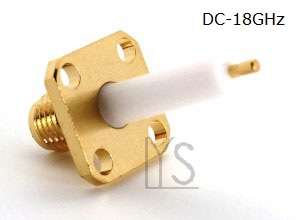

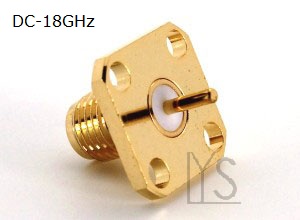

RP-SMA Female Panel 4 Holes (Exposed PTFE ) Terminal Blunt Post
