PRODUCT ITEM
- (P / NO)
- SPEC.
- RP- SMA Female Panel 2 Holes Terminal Slot Post
- LYS CLASS NO.
- RSMA612CH Series
- FILE
- PATENT
- Air Insulator + Anti-Slip Annular Section
| LIH YEU SHENG Industries Co.,LTD. | ||
| ※ Product Info | ||
| P / No. | Contact | Body Material/ Finished |
| RSMA612CH-10.8 | Slot 0.4 x Length 1.3mm | Brass/ Gold 10u" |

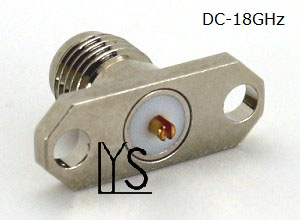

| RSMA612CH-10.8(ST) | Slot 0.4 x Length 1.3mm |
Stainless Steel/Passivated |
| ※ Common Info. | ||||
| Total L | Impedance | Frequency | Contact Finished | Temp. Range |
| 10.8mm | 50Ω | 0-18.0GHz | Gold 30u" | -65℃ ~ +155 ℃ |

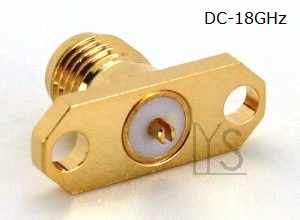

RP- SMA Female Panel 2 Holes Terminal Slot Post
