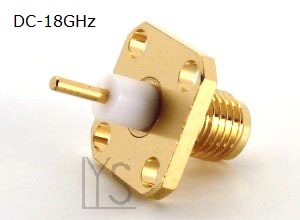

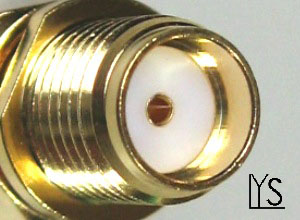

SMA Female Panel 4 Holes (Exposed PTFE ) Terminal Blunt Post
LYS CLASS NO.
SMA601BH Series
FILE

Test_SMA Female Panel 2-4 Holes_BH_18GHz_Structure Only.pdf

PATENT
Anti-Slip Annular Section
 LIH YEU SHENG Industries Co.,LTD.

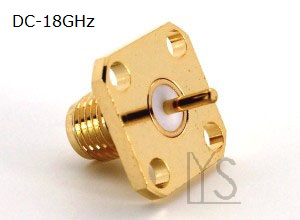

 ※ Panel 4 Holes & Exposed Contact
 P / No.  Total L. (mm) Exposed Contact (mm)
SMA601BH-12 12.0 Φ1.27x 2.5
SMA601BH-14.6  14.6 Φ1.27x 5.1
 SMA601BH-15.5  15.5  Φ1.27x 6.0
SMA601BH-16.4/0 16.4 Φ1.27x 6.9
SMA601BH-18.3/0  18.3 Φ1.27x 8.8

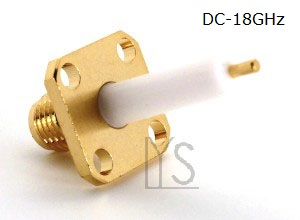

※ Panel 4 Holes & Exposed PTFE
 P / No.  Total L. (mm) Exposed PTFE (mm)
SMA601BH-14.6/1.0 14.6 1.0
SMA601BH-14.6/3.0  14.6 3.0
 SMA601BH-15.5/4.1  15.4  4.1
 SMA601BH -16.4/0.5 16.4 0.5
 SMA601BH -16.4  16.4  5.0
 SMA601BH-18.8/6.0  18.8  6.0
 SMA601BH-18.8/6.5  18.8  6.5
 SMA601BH-19.8/8.0  19.8  8.0
 SMA601BH-20.5/8.0  20.5  8.0
 SMA601BH-26.5  26.5  10.0
 SMA601BH-27.4  27.4  15.0
 SMA601BH-27.4/12.5  27.4  12.5

 ※ Common Info.
 Impedance Frequency Body Material/ Finished Contact Finished Temp. Range
 50Ω  0-18.0GHz  Brass/ Gold 10u"  Gold 30u"  -65℃ ~ +155 ℃

※ Test Report: Structure test only, not included PCB and Solder.



SMA Female Panel 4 Holes (Exposed PTFE ) Terminal Blunt Post
