PRODUCT ITEM
- (P / NO)
- SPEC.

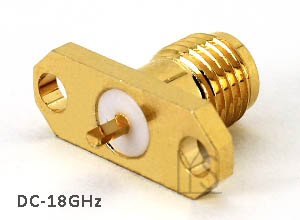

- SMA Female Panel 2 Holes (Exposed PTFE) Terminal Semicircle Post
- LYS CLASS NO.
- SMA616BH Series
- FILE
-
Test_SMA Female Panel 2-4 Holes_BH_18GHz_Structure Only.pdf Test_SMA Female Panel 2-4 Holes_BH(ST)_18GHz_Structure Only.pdf
- PATENT
- Anti-Slip Annular Section
| LIH YEU SHENG Industries Co.,LTD. | |||
| ※ Product Info. | |||
| P / No. | Total L.(mm) | Terminal (mm) | Body Material/ Finished |
| SMA616BH-12 | 12.0 | Semicircle/ 0.8 x 2.5 | Brass/ Gold |
| SMA616BH-15.5 | 15.5 | Exposed PTFE / Φ4.1 x 4.1 | Brass/ Gold |
| SMA616BH-12(ST) | 12.0 | Semicircle/ 0.8 x 2.5 | Stainless Steel/Passivated |
| SMA616BH-15.5(ST) | 15.5 | Exposed PTFE / Φ4.1 x 4.1 | Stainless Steel/Passivated |
| ※ Common Info. | |||
| Impedance | Frequency | Contact Finished | Temp. Range |
| 50Ω | 0-18.0GHz | Gold | -65℃ ~ +155 ℃ |
※ Test Report: Structure test only, not included PCB and Solder.
SMA Female Panel 2 Holes (Exposed PTFE) Terminal Semicircle Post
