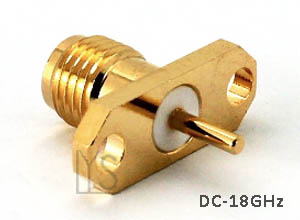

※Panel 2 Holes & Exposed Contact
P / No.	Total L. (mm)	Exposed Contact (mm)
SMA611BH-12	12.0	Φ1.27x 2.5
SMA611BH-14.6	14.6	Φ1.27x 5.1
SMA611BH-15.5	15.5	Φ1.27x 6.0
SMA611BH-18.3/0	18.3	Φ1.27x 8.8

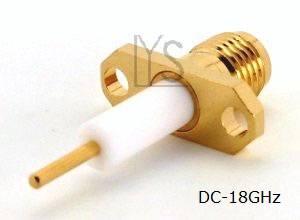

※Panel 2 Holes & Exposed PTFE
P / No.	Total L. (mm)	Exposed PTFE (mm)
SMA611BH-14.6/1.0	14.6	Φ4.1x 1.0
SMA611BH-14.6/3.0	14.6	Φ4.1x 3.0
SMA611BH-15.5/4.1	15.4	Φ4.1x 4.1
SMA611BH -16.4/0.5	16.4	Φ4.1x 0.5
SMA611BH -16.4	16.4	Φ4.1x 5.0
SMA611BH-18.8/6.0	18.8	Φ4.1x 6.0
SMA611BH-18.8/6.5	18.8	Φ4.1x 6.5
SMA611BH-19.8/8.0	19.8	Φ4.1x 8.0
SMA611BH-20.5/8.0	20.5	Φ4.1x 8.0
SMA611BH-26.5	26.5	Φ4.1x 10.0
SMA611BH-27.4	27.4	Φ4.1x 15.0
SMA611BH-27.4/12.5	27.4	Φ4.1x 12.5

※ Test Report: Structure test only, not included PCB and Solder.

SMA Female Panel 2 Holes (Exposed PTFE ) Terminal Blunt Post
