  1. SMA TO IPEX
LYS CLASS NO.
SMA40M-4
FILE
Test Report_SMA40M-4_10G.pdf
SPEC.

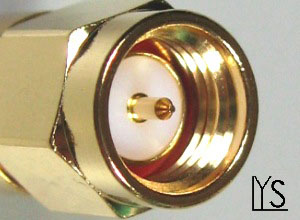

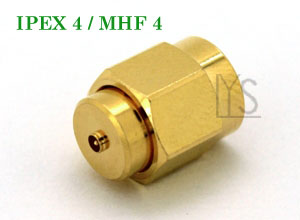

SMA Male To IPEX4 / MHF4 Female Straight Adapter

PATENT
C-Ring
INFORMATION
 LIH YEU SHENG Industries Co.,LTD.
 ※ Product Info.
 ※ Reliability Testing: Continuous immersion in water under 140cm for 7 hours.
 ※ MHF4 Durability : 1000 Cycles Min.
P / No. Total L. Interface  IP Rating
 SMA40M-4  11.1mm  SMA Male vs. IPEX4 / MHF4 Female  SMA Male IP67

  ※ Common Info.
Impedance Frequency Body Finished Contact Finished Temp. Range
 50Ω  0-10.0GHz  Gold  Gold  -65℃ ~ +155 ℃





(please swipe left)
