  1. SMA TO IPEX
LYS CLASS NO.
SMA90N
FILE
Test Report_SMA90N_10G.pdf
SPEC.

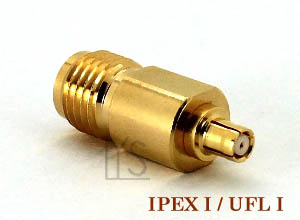

SMA Femal To IPEX I & II / UFLF I & II  Male Straight Adapter

INFORMATION
  LIH YEU SHENG Industries Co.,LTD.


 ※ Product Info.       IPEX Mating Durability：1000 cycles Min.
    P / No.  Total L.  Thread L. Interface
 SMA90N  15.9mm  5.9mm  SMA Femal vs.  IPEX I & II / UFLF I & II  Male

 ※ Common Info.
Impedance Frequency Body Finished Contact Finished  Temp. Range
 50Ω  0-10.0GHz  Gold  Gold  -65℃ ~ +155 ℃
