  1. SMA TO IPEX
LYS CLASS NO.
SMA40M
FILE
Test Report_SMA40M(A版)_10G.pdf
FILE
Test Report_SMA40M(B版)_10G.pdf
SPEC.

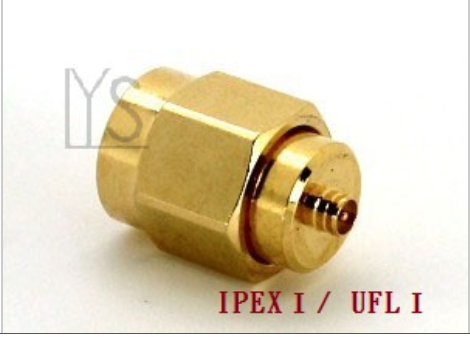

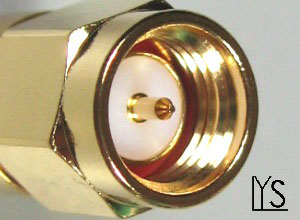

SMA Male To IPEX I & II / UFLF I & II Female Straight Adapter

PATENT
C-Ring
INFORMATION
  LIH YEU SHENG Industries Co.,LTD.

 ※ Product Info.
 ※ Reliability Testing: Continuous immersion in water under 140cm for 7 hours.
 ※ IPEX Durability: 1000 cycles Min.
P / NO.   Total L.  Interface  IP Rating
 SMA40M  11.8mm

SMA Male vs. IPEX I & II / UFLF I & II Female

  SMA Male IP67


※ Common Info.
 Impedance Frequency  Body Finished Contact Finished
Temp. Range
 50Ω  0-10.0GHz  Gold  Gold  -65℃ ~ +155 ℃
