  1. SMA TO IPEX
LYS CLASS NO.
SMA82M
FILE
Test Report_SMA82M_10G.pdf
SPEC.

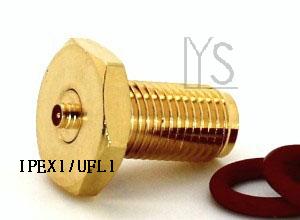

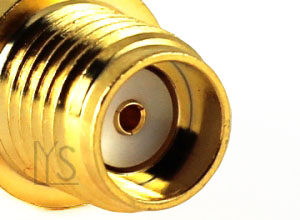

SMA Femal Bulkhead To IPEX I & II / UFLF I & II Female Straight W/O-Ring Adapter

PATENT
Air Insulator
INFORMATION
  LIH YEU SHENG Industries Co.,LTD.
 ※ Product Info.
 P / No.  Total L.  Thread L.
Interface
 SMA82M  15.0mm

11.4mm

SMA Female vs. IPEX I & II / UFLF I & II Female


※ Common Info.
 Impedance Frequency Body Finished Contact Finished Temp. Range
 50Ω  0-10.0GHz  Gold  Gold  -65℃ ~ +155 ℃

※ IP Code: IP67 Certificated
