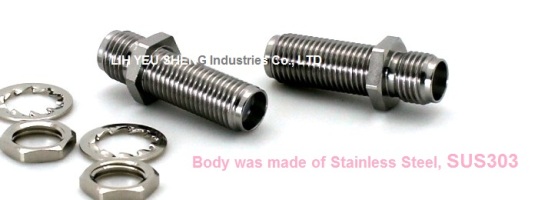

SMA Adapter, SMA Female TO SMA Female BH, SUS303
2012.08.11



SMA Adapter, SMA F TO SMA F BH, SUS303



 Product Information

 Product No.:  SMA81A Series
Frequency Range: DC-10GHz
Impendance: 50Ω
Electric Performance: VSWR 1.2 Max.
Working Voltage: 335 Vrms
Deilectric Withstanding Voltage: 1000 Vrms
Insulator Resistance: 5000 MEGOHMS

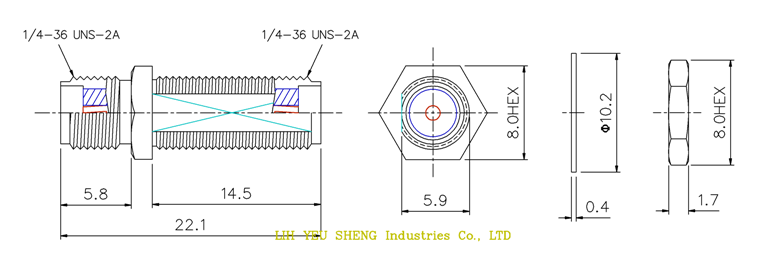

Drawing

SMA Adapter_SMA F TO SMA F BH_Drawing

                                                                                                                          Unit:mm

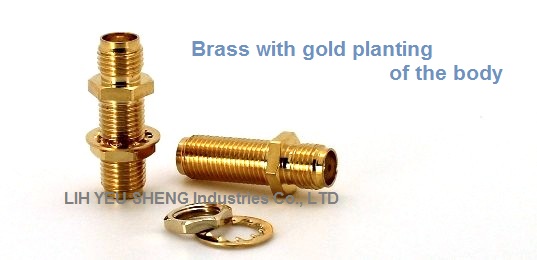

SMA Adapter_SMA F TO SMA F_Brass





Performance

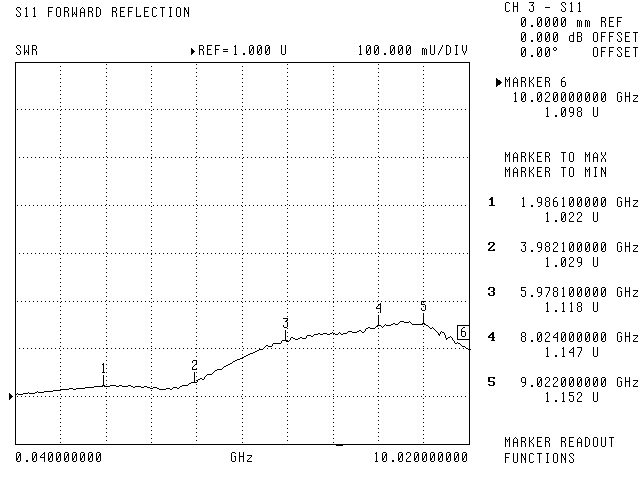

Ⅰ. S11 / VSWR



  Performance_SMA81A_S11

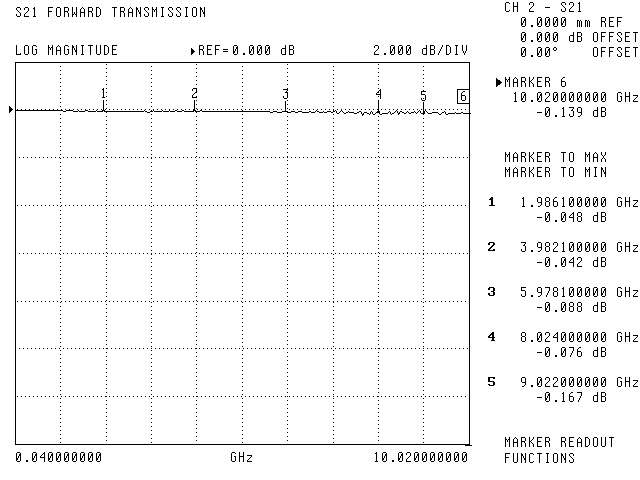

Ⅱ. S21 / IL



Performance_SMA81A_S21



   Are you  interesting in it ?  Contact US
