RF Adapter // SMA Female TO MHF4
2012.05.19

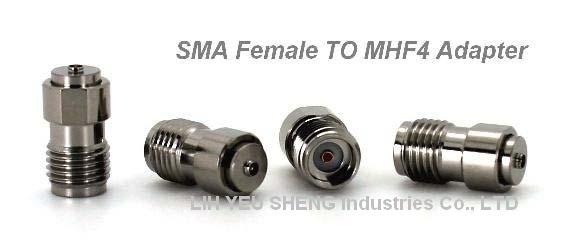

SMA90M(Ni)_PIC

 Product Information

  P/No.:

SMA90M(Ni)
 Frequency Range:
DC-6GHz
 Impendance: 50Ω
 Electric Performance:
VSWR 1.2 Max.

  Durability:

1000 Cycles Min. (for MHF4)
 Patent:
Air Insulator Design
 Working Voltage: 170 Vrms
 Deilectric Withstanding Voltage:
1000 Vrms
 Insulator Resistance:
5000 MEGOHMS
 Finished:
Body Electorless Nickel / Contact Gold 20μ

 Application:

 I-PEX Ⅳ, Murata Ⅳ, ... etc.



Drawing

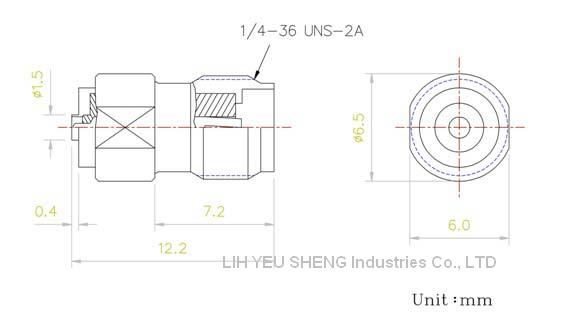

SMA90M(Ni)_Drawing

 Perfromance



Ⅰ. S11 / VSWR

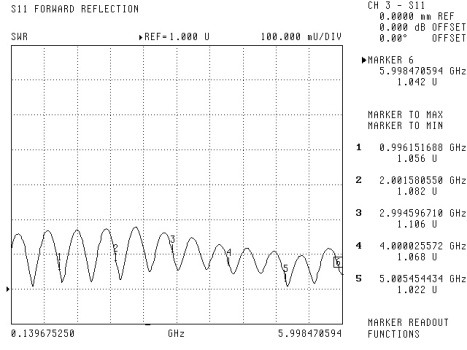

SMA90M(Ni)_S11_VSWR



Ⅱ. S11 / IL

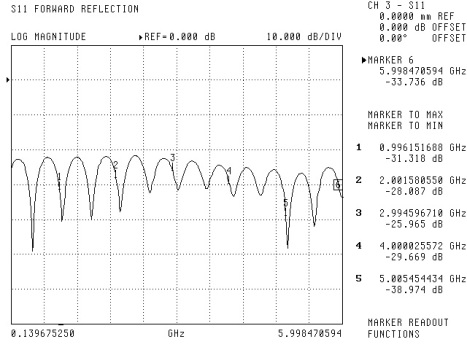

SMA90M(Ni)_S11_IL



 More information about SMA90M(Ni)
