PRODUCT ITEM
- (P / NO)
- SPEC.

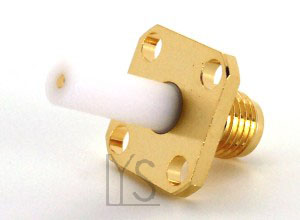

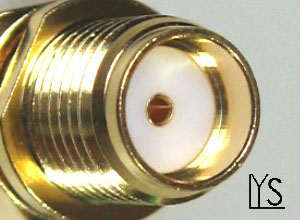

- SMA Female Panel 4 Holes Exposed PTFE -Relative - 18GHz SMA-
- LYS CLASS NO.
- SMA600B Series
- PATENT
- Anti-Slip Annular Section
| LIH YEU SHENG Industries Co.,LTD. | |||
| ※ Impedance：50Ω | |||
| P / No. | Total L. | Exposed PTFE | Body Material/ Finished |
| SMA600B-19.5/10 | 19.5mm | 10.0mm | Brass/ Gold |
| SMA600B-21/11.5 | 21.0mm | 11.5mm | Brass/ Gold |

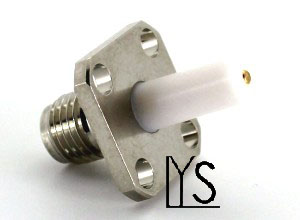

| SMA600B-19.5/10(ST) | 19.5mm | 10.0mm | Stainless Steel/Passivated |
| SMA600B-21/11.5(ST) | 21.0mm | 11.5mm | Stainless Steel/Passivated |
SMA Female Panel 4 Holes Exposed PTFE -Relative - 18GHz SMA-
