  1. SMA TO IPEX
LYS CLASS NO.
SMA90M(Ni)
FILE
Test Report_SMA90M(Ni)(A版).pdf
FILE
Test Report_SMA90M(Ni)(B版)_10G.pdf
SPEC.

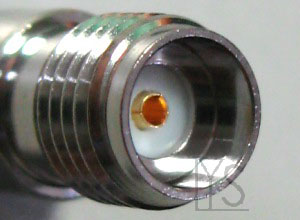

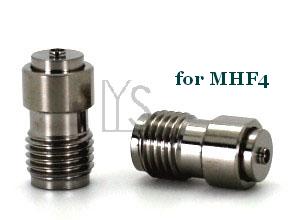

SMA Femal To MHF4 / IPEX 4 Female Straight Adapter

PATENT
Air Insulator
INFORMATION
 LIH YEU SHENG Industries Co.,LTD.
 ※ Product Info.
 P / No.  Total L.  Thread L. Durability (MHF4)  Interface
 SMA90M(Ni)  12.2mm  7.2mm  1000 Cycles Min.  SMA Female vs. MHF4 Female


※ Common Info.
Impedance Frequency   Body Finished Contact Finished  Temp. Range
 50Ω  0-6.0GHz &
0-10.0GHz		  Electorless Nickel Plating  Gold  -65℃ ~ +155 ℃



(please swipe left)
